2 Watt RF Load Up to 12 GHz with 75 Ohm BNC Male Tri-Metal over Copper Plated Brass

✖

✖

分享到微信

打开微信，点击底部的“发现”，
使用“扫一扫”即可将网页分享至微信联系人/群组。

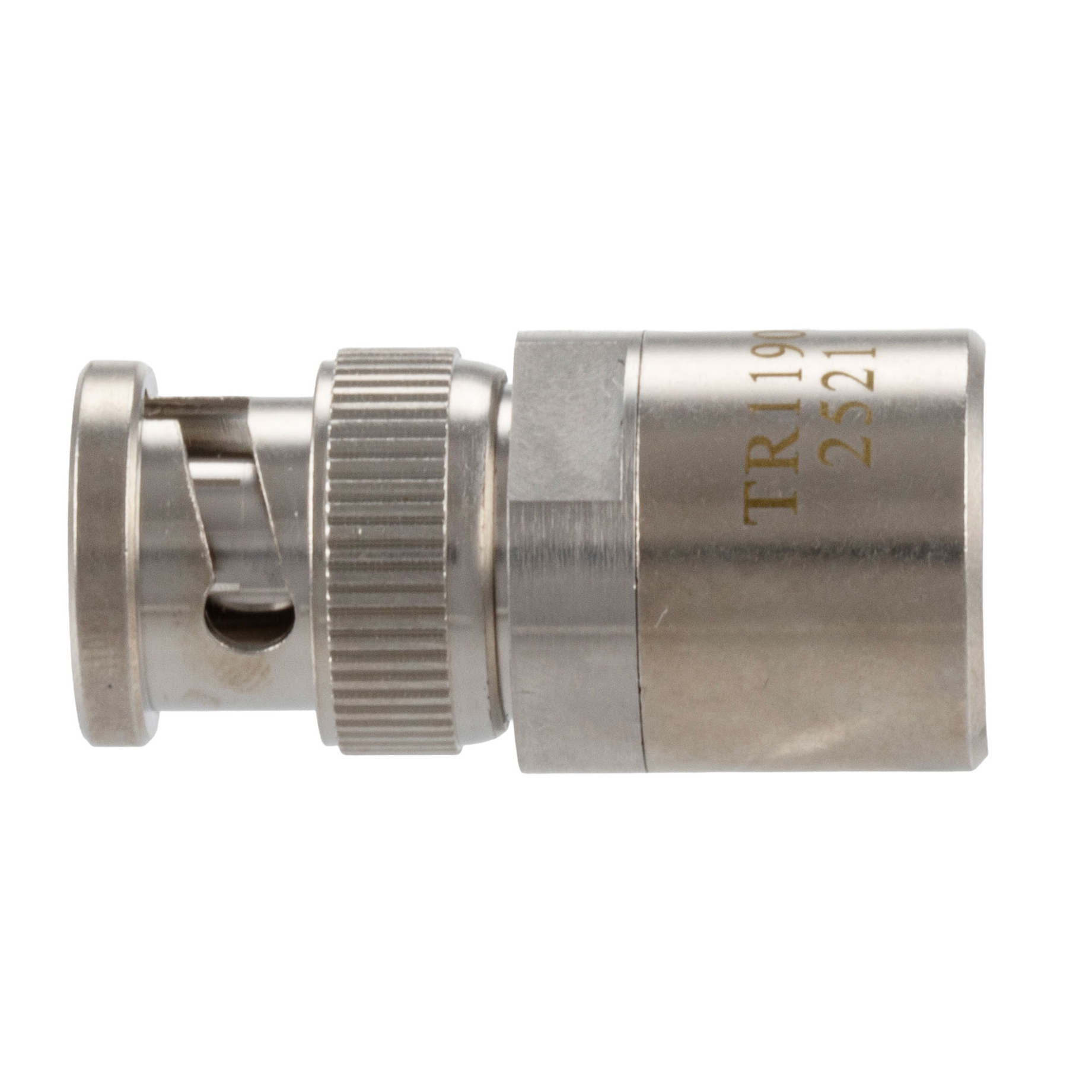

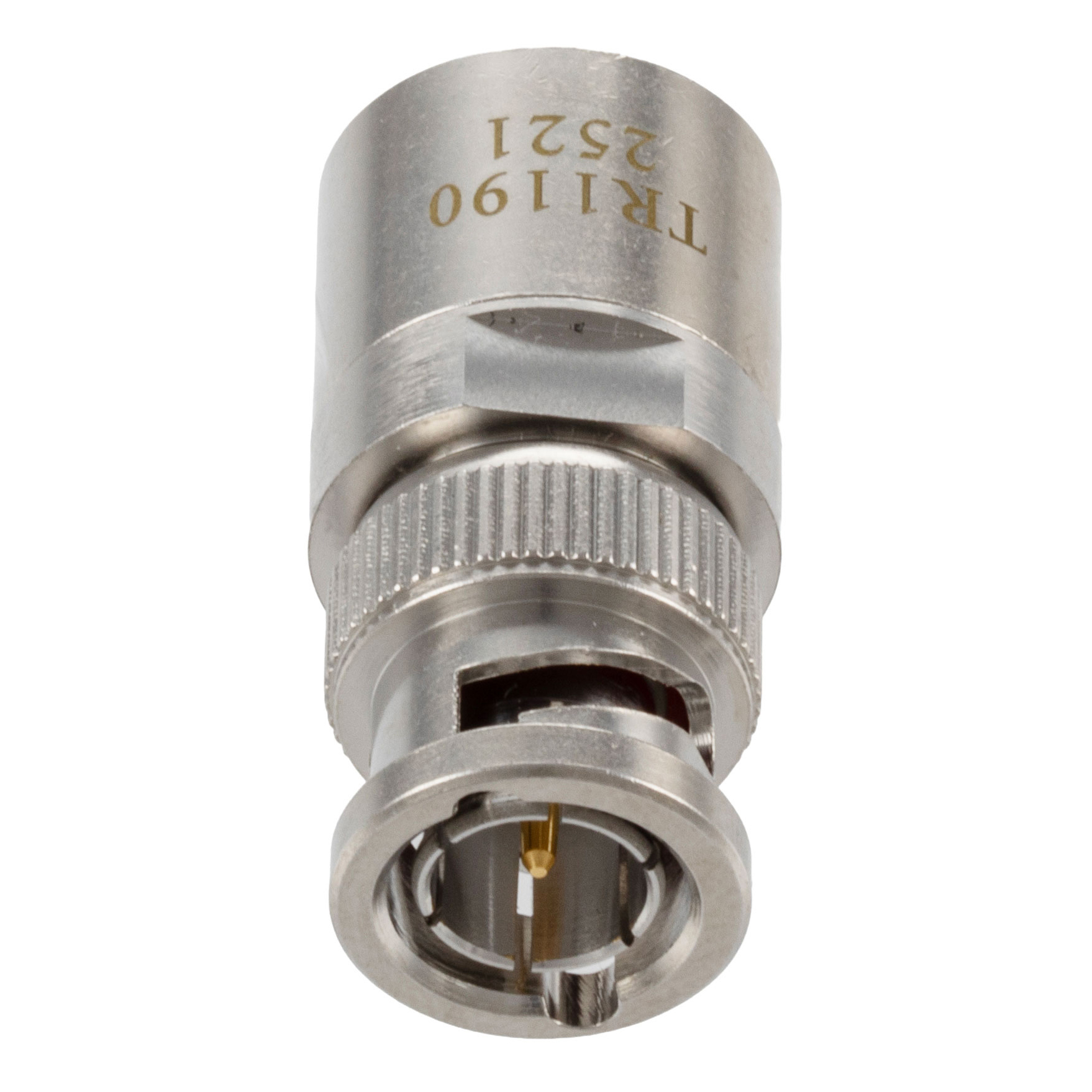

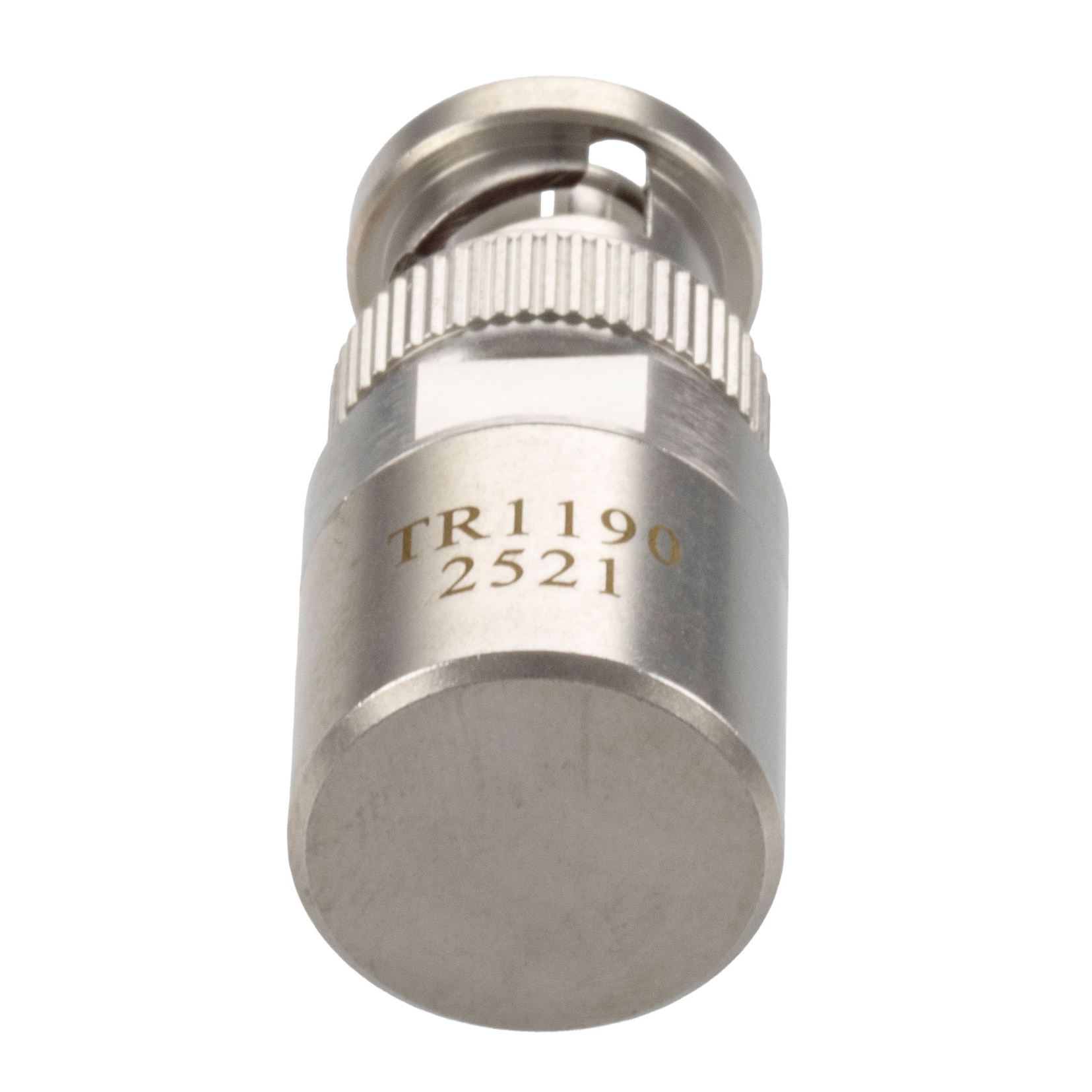

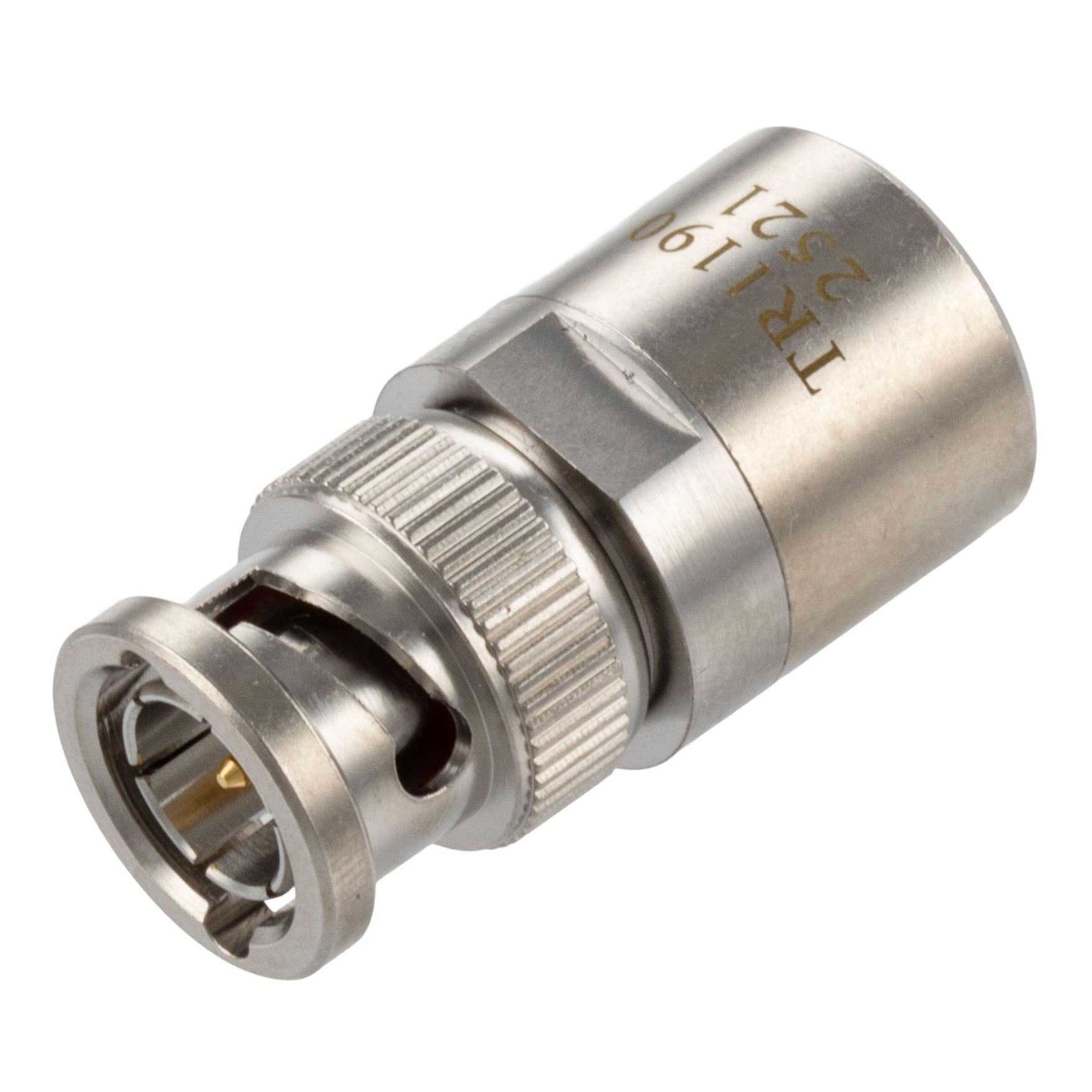

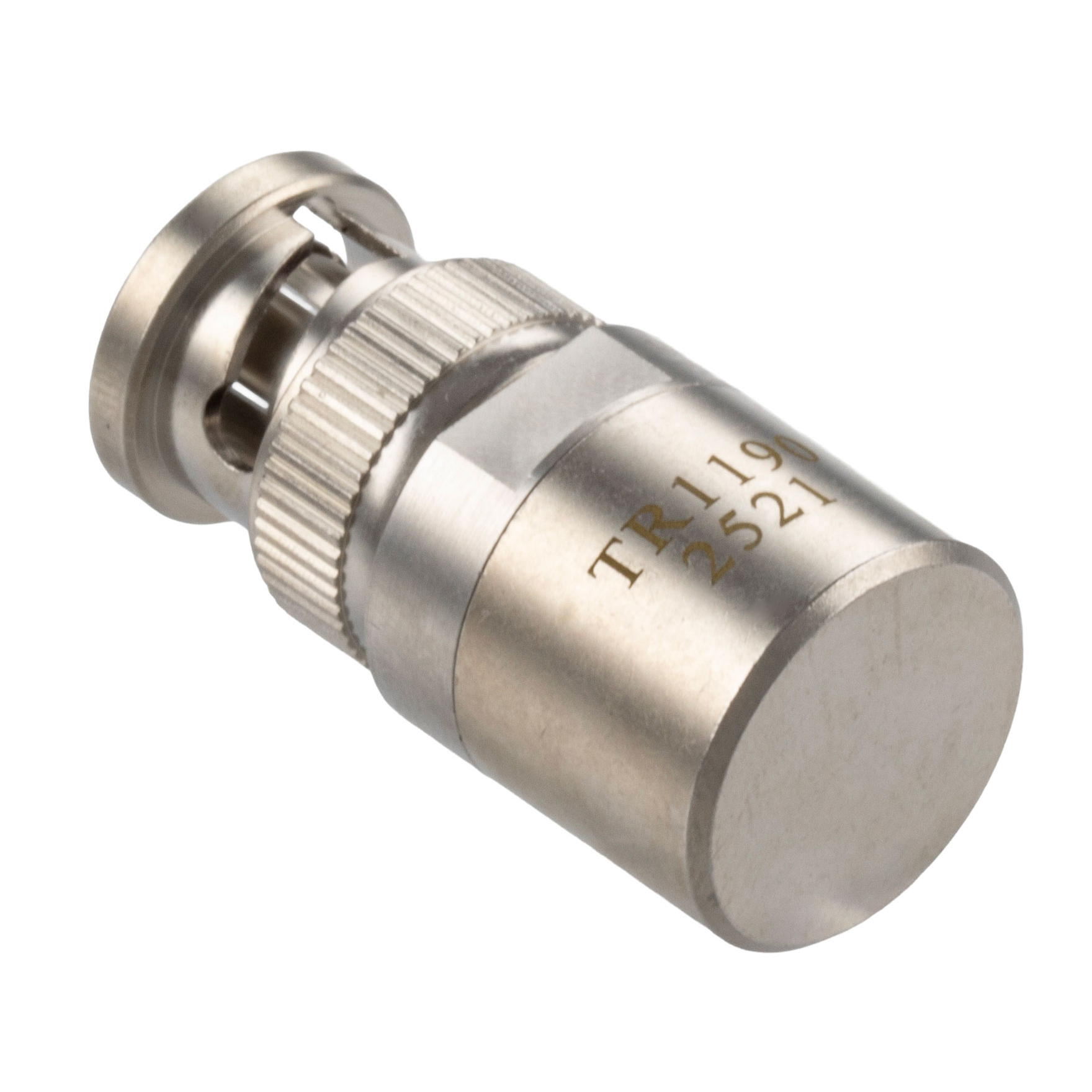

L-com’s LCTR1190 is an RF load termination manufactured for 8k UHD TV and video distribution applications. This RF load termination is just part of a wide selection of coaxial terminator products offered for radio, antenna, and other types of RF components for typical use, production, laboratory test and measurement, defense/military, etc., that are specifically prepared for quick shipment. Our radio frequency terminator has a BNC male connector configuration.

The LCTR1190 terminator is available with a 75 Ohm impedance and is rated for a maximum frequency of 12 GHz. Our BNC termination has a brass housing body with tri-metal over copper plating. Our RF load terminator has a maximum input power rating (CW) of 2 Watts and a maximum VSWR of 1.25:1. Additional dimensions and specifications for this RF load termination are on our downloadable PDF datasheet above.

This RF termination is commonly used to terminate devices such as couplers, hybrids, circulators, and combiners. Our 2 Watts RF termination is designed to withstand temperatures ranging from -55 to +165 deg C. Our LCTR1190 RF terminator from L-com has a beryllium copper inner conductor material with gold over nickel-phosphorus alloy over copper plating. Make your online purchase right now to take advantage of our same-business-day shipping.

L-com is where to buy a high-quality 12 GHz RF load/termination for quick shipment worldwide because this is only one of more than a million RF parts/components we have available. We also stock a wide selection of other coaxial dummy load termination products that will ship the same business day. Our BNC male RF load termination is in stock and ships the same business day from our United States warehouse.
